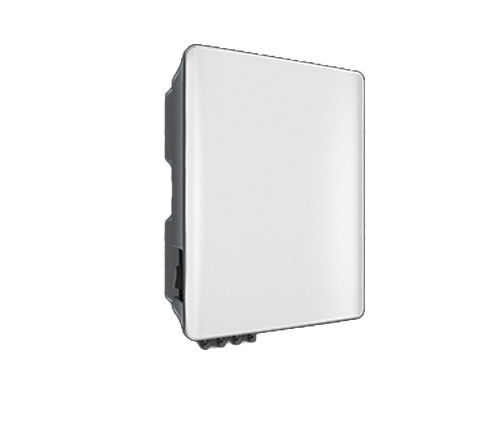

LN-5000S-HY
Smart Optimization
More Power Generation
The new HonorSolar inverter improves power generation in an all-round way.Industry-leading ultra-high conversion efficiency, less power loss. Multi-peak MPPT tracking function ensures that the components always work at maximum efficiency. Advanced PID repair technology avoids component power attenuation. All performance improvements are only for higher power generation benefits.
System-Level Security
· Short-circuit and overload protection
· Reverse polarity prevention
· Frequency/voltage ride-through
· Smart grid compliance

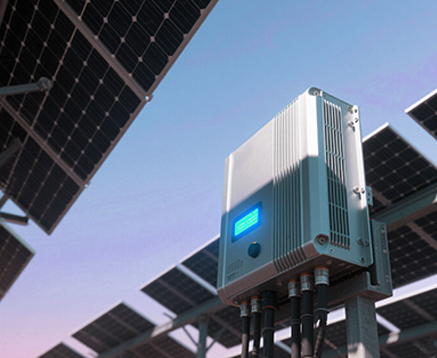

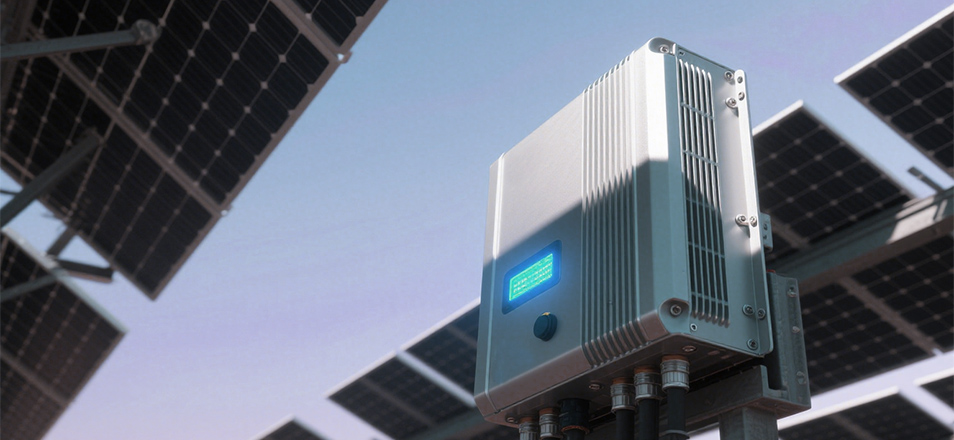

Remote Monitoring, Real-Time Anomaly Alerts
Our smart operation and maintenance (O&M) system revolutionizes PV plant management through cutting-edge IoT technology and AI analytics, delivering 24/7 intelligent supervision.
Tested in Severe Conditions, Long-Lasting Stability
Adapt to various harsh industrial and commercial environments and climates, and operate stably for decades.Through thousands of rigorous tests such as lightning protection, hydrogen explosion protection, high and low temperature cycles, etc., it can operate perfectly and stably in cold environments such as plateau snow mountains, hot environments such as tropical deserts, and harsh environments with high humidity and high salt fog. Self-developed broadband MBUS chip, with strong anti-interference ability and more stable communication. THDi <1%, stable output even in weak power grids, and higher power generation quality.
-
10x+Communication anti-interference*
-
99.999%Availability*
-
1400+Rigorous testing*
Performance in Tropical & Desert Heat
Built for scorching deserts and tropics, delivers full power output even at 60℃ with intelligent liquid cooling. Defies sandstorms and scorching sun to ensure reliable power generation.
Performance in Extreme Cold & High Altitude
Engineered for alpine and polar regions, operates reliably from -40℃ to 60℃ with smart thermal management. Defies blizzards and freezing rain to deliver uninterrupted power all year round.
Performance in Sandstorm & Coastal Areas
Engineered for harsh coastal and desert areas, features IP66 rating with self-cleaning system. Withstands sandstorms, salt corrosion and humidity for long-term reliable operation.

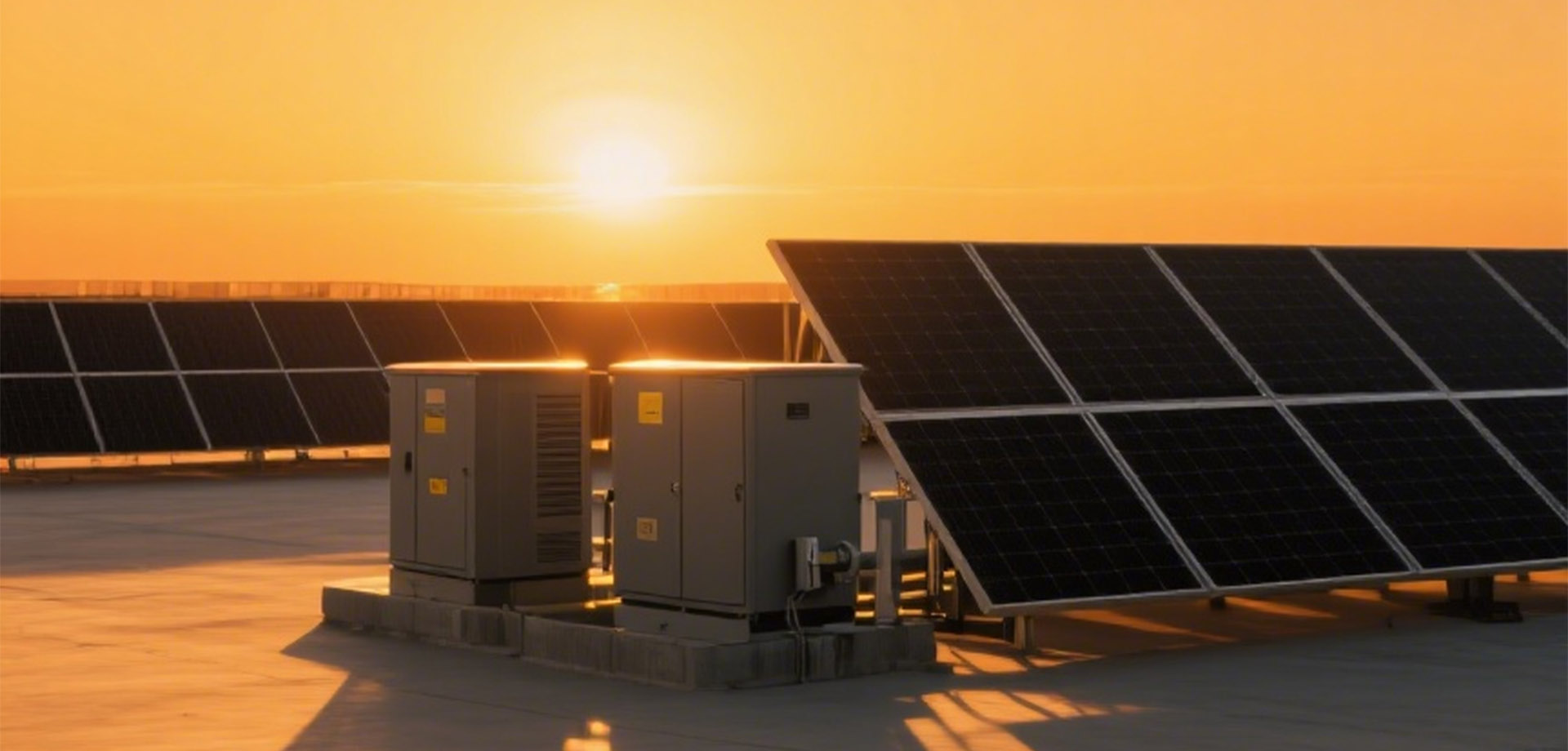

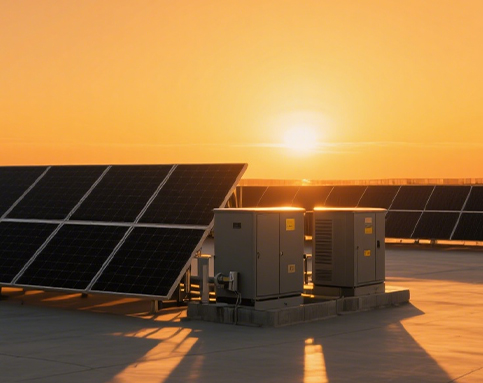

Efficient Installation
Smart Layout for Maximum ROI
Smart-optimized layout increases energy yield by 15% with precision shade avoidance. Plug-and-play modular design cuts installation time by 40% – deploy 100kW systems in 1 day, accelerating payback period by 30%.
Product Features
-
IP66 protectionDustproof, waterproof, and salt spray resistant -
AC and DC lightning protectionNo fear of lightning strikes -
Flexible CommunicationsOptional WLAN, Ethernet, 4G communication
Whole House Power BackUp
| Models | 6K | 7.5K | 8K | 10K |
| Input DC | ||||
| Max input voltage | 600 V | |||
| Rated voltage | 330 V | |||
| Start-up voltage | 120 V | |||
| MPPT voltage range | 100-150V | |||
| Max input current | 14 A / 14 A / 14 A | 4 × 14 A | ||
| Max short circuit current | 22 A / 22 A / 22 A | 4 × 22 A | ||
| MPPT number / Max input strings number | 3 / 3 | 4 / 4 | ||
| Output AC | ||||
| Rated output power | 6 kW | 7.5 kW | 8 kW | 10 kW |
| Max apparent output power | 6 kW | 7.5 kW | 8 kW | 10 kW |
| Max output power | 6 kW | 7.5 kW | 8 kW | 10 kW |
| Rated grid voltage | 1Ф/PE, 240 V / 208 V | |||
| Rated grid frequency | 60 Hz | |||
| Max output current for 240V grid | 24.3 A | 31.2 A | 32.1 A | 41.6 A |
| Max output current for 208V grid | 28.5 A | 36.1 A | 36.9 A | 43.1 A |
| Power factor | > 0.99 (0.8 leading – 0.8 lagging) | |||
| THDi | < 3% | |||
| Max efficiency | 0.976 |
| CEC efficiency | 0.973 |
| DC reverse-polarity protection | Yes |
| Ground fault monitoring | Yes |
| Anti-islanding protection | Yes |
| Integrated AFCl | Yes |
| Integrated DC switch | Yes |
| Multi peak scan | Yes |
| Rapid shutdown | Built-In APS or Tigo Transmitter |
| Surge protection | DC Type ll / AC Type ll |
| Compliant MLRSD products | TS4-A-F/2F/O, APSmart RSD-S/RSD-D |
| Dimensions (W x H x D) | 330× 720 × 246 mm |
| Weight | 20.6kgs |
| Topology | Transformerless |
| Self-consumption (night) | <1W |
| Relative humidity | 0-100% |
| Operating ambient temperature range | -25°℃ to 60°C |
| Ingress protection | TYPE 4X |
| Noise emission (typical) | < 30 dB(A) |
| Cooling concept | Natural cooling |
| Max operation altitude | 13,120 ft(4000 m) |
| Compliance | UL1741SB, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1 |
| DC connection | 2 knockout for 1″conduit at bottom, 4 knockout for 3/4″conduit at side and back, Screw clamp terminal |
| AC connection | 2 knockout for 1″conduit at bottom, 4 knockout for 3/4″conduit at side and back, OT terminal |
| Display | LCD |
| Communication | RS485, Optional: Cellular, Wi-Fi |
