Comprehensive Safety Protection

Comprehensive Safety Protection
A high-reliability protection system is elaborately constructed through a scientific and hierarchical multi-level safety design, integrating advanced software intelligent management and robust hardware physical defense to form a seamless safety barrier.

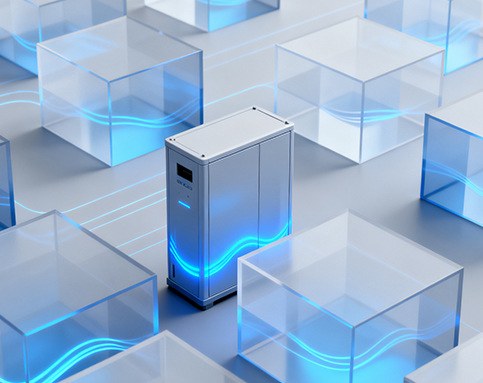

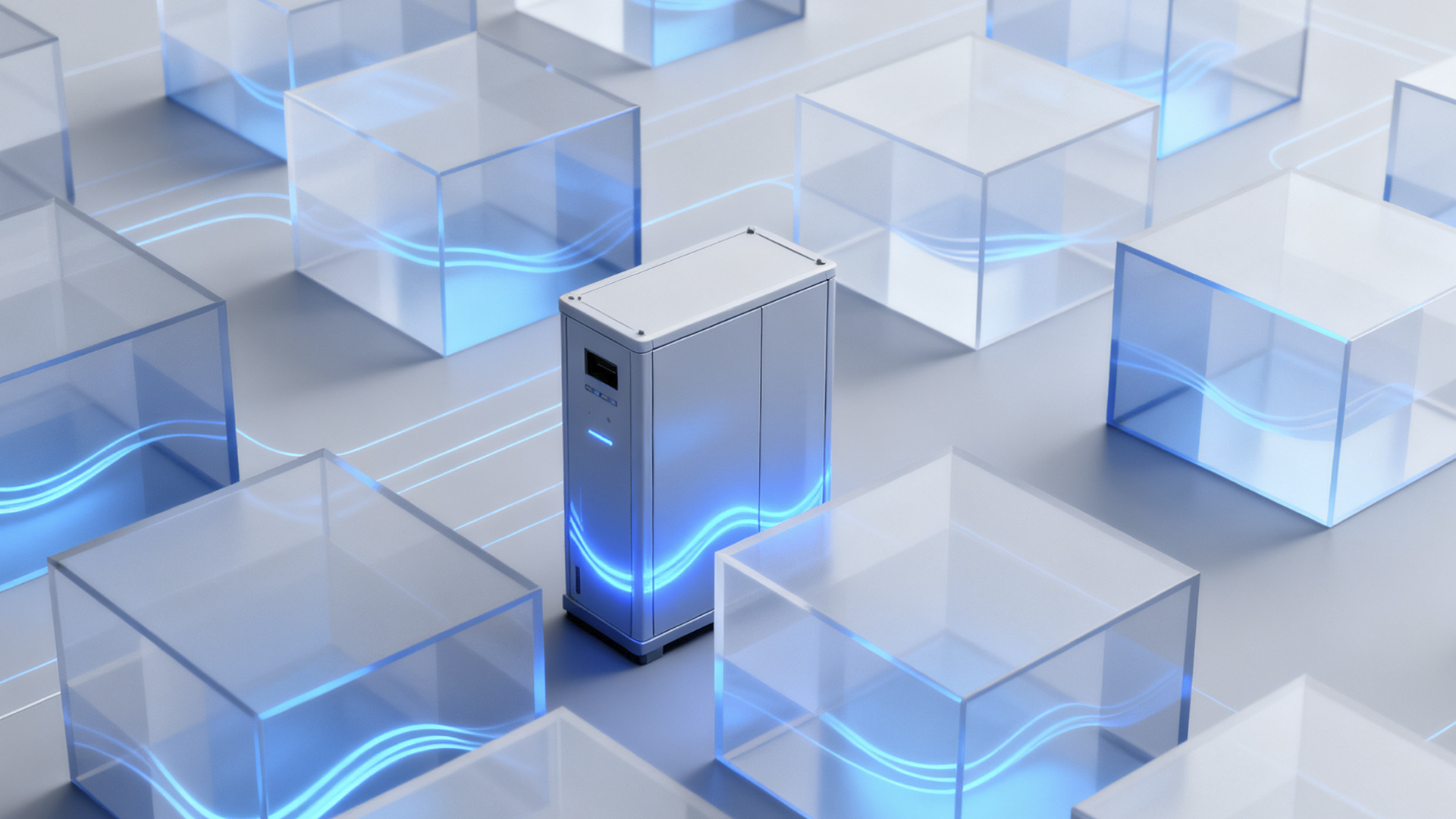

Controllable Equipment Lifecycle Cost
This design does not only focus on single-point risk prevention but also achieves systematic coverage of potential hazards, ensuring that every link of the equipment operation is under effective protection. Starting from the core system-level intelligent protection, it has built three interlocking intelligent defense lines to cope with various electrical safety risks that may occur during operation.

High Adaptability to Diverse Needs

Equipped with standardized interfaces, it supports multi-machine parallel connection and is easy for capacity expansion. Through modular design and customized parameter adjustment, it matches different electrical loads and installation environments, breaks through scenario limitations, and realizes wide-ranging applications.

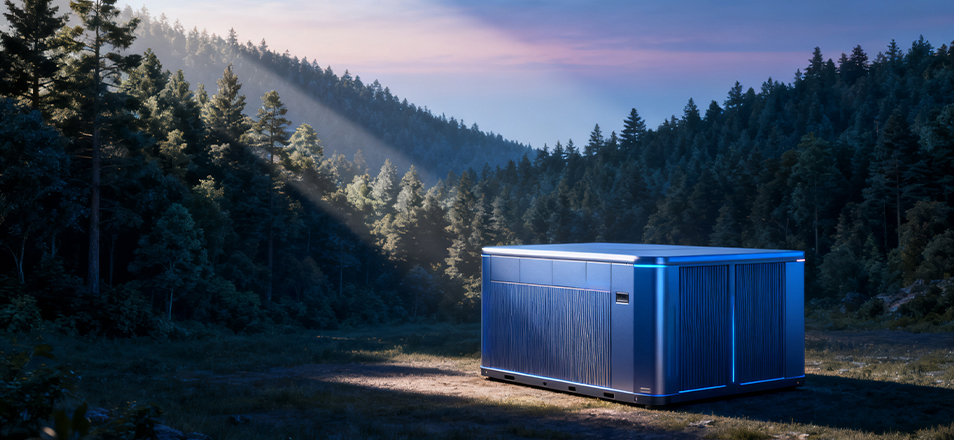

High Adaptability for Flexible Response to Diverse Needs--

Product Features

  • Layer_1
    IP66 protection
    Dustproof, waterproof, and salt spray resistant
  • Layer 2
    AC and DC lightning protection
    No fear of lightning strikes
  • Layer 2 (1)
    Flexible Communications
    Optional WLAN, Ethernet, 4G communication

Whole House Power BackUp

BATTERY DATA
Cell Type LFP 280Ah
Pack Type 1P52S
Battery Capacity 3320kWh
Nominal Power 1650kW
Norinal Voltage 1328.2V
Battery Voltage Range 1161.8-1456.8V



CONTROL DATA
Auxiliary Power Interface AC380+5%/50Hz,3 Phase 4 wire
Auxiliary System PeakPower     Requirement 32kVA
Communication interface Ethernet
Communication Protocol Modbus TCP/EC61850
Compliance GB/T36276,GB/T34131



SYSTEM PARAMETER
IP Rating IP55
Cooling Concept Liquid-cooled
Fire Suppression System Perfluorohexane fire protection systemwater sprinkler fire protection system
Ambient Operatinglemperature Range ‘-30℃~50℃(>45 °C derating)
Relative Humidity 8%-100%(Nan-condensing)
Max. Working Altitude <3000m(> 3000m derating)
Dimensions(WxDxH) 6055*2600*2892mm
Weight <32t

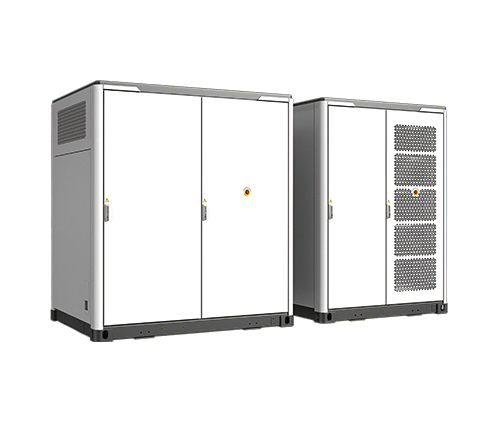

储能箱1
JN-ENS-01
