How Does an Inverter Turn One-Way Street Current into Two-Way Traffic?

In our daily lives, Direct Current (DC) and Alternating Current (AC) are like two rivers with distinct characteristics. DC is analogous to a straight one-way street, where the current flows steadily in a single direction; AC, on the other hand, resembles a busy two-way road, with the current direction changing periodically. So, when our phone chargers, solar power systems, or electric vehicles need to switch between these two current forms, who silently takes on this “traffic control” role? The answer is—the inverter.

I.What is a Photovoltaic Inverter?

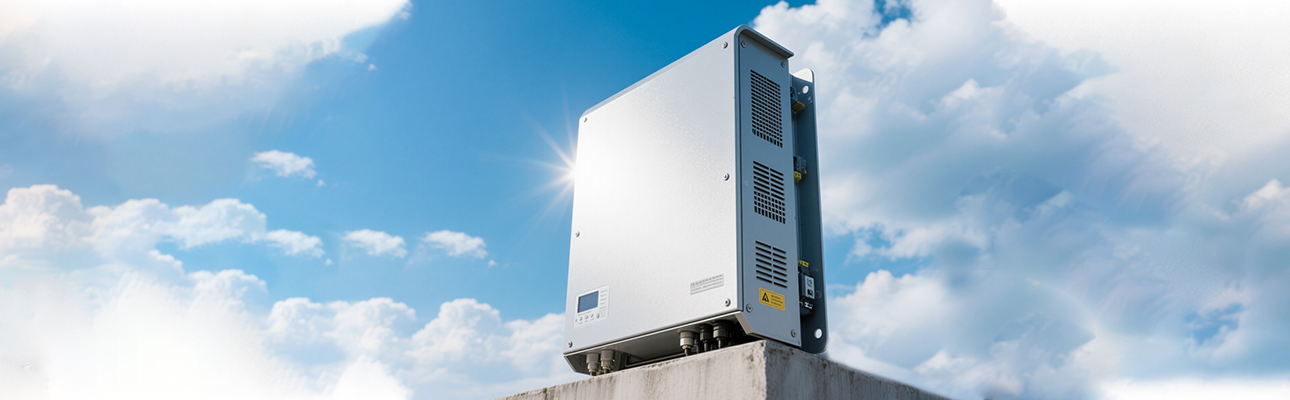

A photovoltaic (PV) inverter is one of the core components of a solar power system. Its primary mission is to convert the DC power generated by solar panels (photovoltaic modules) into AC power that meets the requirements of the power grid or electrical equipment. Most of the electricity we use in daily households, industrial settings, and even the power transmitted through the grid is in AC form, such as the common 220V/50Hz (China’s civil voltage standard) or 110V/60Hz (civil voltage standard in some countries). However, solar panels produce DC power after absorbing sunlight—this is similar to two devices using different “languages” that cannot communicate or collaborate directly. The PV inverter acts as a “translator,” converting DC power into AC power, allowing the electricity generated by solar energy to smoothly “enter” our lives: it powers various electrical appliances or feeds surplus electricity into the grid.

II.Unveiling the Working Principle

 (1) The Magic of Converting DC to AC

An inverter achieves the conversion of DC to AC mainly through its internal electronic components and sophisticated circuit design. Common electronic components include **IGBTs (Insulated Gate Bipolar Transistors) and MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors), which act like high-speed switches that open and close in an orderly manner within the circuit. Through specific circuit topologies—such as full-bridge, half-bridge, or multi-level topologies—and precise instructions from a controller (e.g., a DSP digital signal processor), these electronic components work together to “cut” and reorganize the DC power, ultimately outputting AC power. Figuratively speaking, it is like transforming a steadily flowing DC “river” into AC “waves” with periodic fluctuations through the control of a series of complex “pipes” and “valves.”

 (2) Pulse Width Modulation (PWM) – The Secret to Simulating Sine Waves

To ensure the output AC power meets standards and approximates the sine-wave AC power we use daily, inverters adopt Pulse Width Modulation (PWM) technology. The principle of this technology is to adjust the width and frequency of the output voltage pulses by controlling the switching time of electronic components. Specifically, it outputs a series of voltage pulses with varying widths; by subtly changing the pulse duty cycle (the ratio of the high-level duration to the total cycle time), the average value of these pulses can simulate the shape of a sine wave. It is similar to using many building blocks of different sizes and arranging them carefully to form a pattern that approximates a sine curve. This ensures the frequency and amplitude of the output current match the public power grid, meeting the connection requirements of electrical equipment and the grid.

(3) Synchronization with the Power Grid

When a solar power system is connected to the grid, the inverter faces a more complex and critical task—synchronization with the grid. This requires the AC power output by the inverter to precisely match the grid’s AC power in terms of phase, frequency, and voltage, just like two dancers on a stage moving in perfect harmony, with identical steps, rhythms, and postures. The inverter is equipped with multiple high-precision sensors and a powerful microprocessor, which continuously monitor grid parameters such as voltage, frequency, and phase, and quickly adjust the inverter’s output based on the monitoring results. For example, if there is a slight fluctuation in the grid voltage, the inverter can respond immediately and fine-tune the output voltage to ensure the two remain synchronized at all times. Only with this precise synchronization can the electricity generated by solar energy be smoothly fed into the grid without disrupting the grid’s stability or power quality.

 (4) Maximum Power Point Tracking (MPPT) – The “Smart Steward” for Tapping Solar Potential

The position of the sun changes constantly, and cloud cover comes and goes—these factors cause the output power of solar panels to fluctuate at all times. The Maximum Power Point Tracking (MPPT) function acts like a smart steward for solar panels, ensuring they always operate at the Maximum Power Point (MPP). Its working principle is to continuously monitor the output voltage and current of the solar panels, and dynamically adjust the inverter’s input impedance using specific algorithms (such as the perturb and observe method or the incremental conductance method), so that the solar panels always operate in the optimal state and output maximum power. For analogy, MPPT is like an experienced gardener who adjusts watering and fertilization strategies for plants in a timely manner based on environmental changes such as weather and soil moisture, ensuring the plants thrive and yield the most fruit. Under different lighting conditions, the MPPT function can significantly improve the power generation efficiency of the solar system, especially when lighting conditions change frequently or some modules are shaded.

III. Diverse Types, Each with Unique Strengths

 (1) String Inverters

String inverters are widely used in distributed photovoltaic systems. Their working mode involves connecting multiple PV modules in series to form a “string,” which is then connected to a single inverter. This type of inverter is compact and flexible to install—like agile “little assistants” that can adapt to various complex installation environments. They are particularly suitable for small-to-medium-sized rooftop power stations or locations with complex terrain. Moreover, since each string can independently perform Maximum Power Point Tracking (MPPT), if one string is shaded or malfunctions, it will not affect the normal operation of other strings, greatly improving the system’s stability and power generation efficiency. For example, in a rooftop PV project, if some areas are shaded by trees, string inverters allow the unaffected strings to continue generating power efficiently, reducing the loss of overall power output.

(2) Microinverters

Their unique feature is that each solar panel is connected to a separate small inverter. This design offers several advantages: first, the DC-side voltage is low, significantly reducing safety risks—like adding a layer of safety protection to the entire system. Second, each microinverter has an independent MPPT function, meaning even if individual solar panels are shaded, malfunction, or have different power generation efficiencies due to different orientations, other panels can still maintain optimal operation without mutual interference. For example, on a rooftop with multiple orientations, solar panels facing different directions can achieve maximum power output through their respective microinverters, fully tapping the power generation potential of the entire system. Additionally, microinverters support plug-and-play installation, making the installation process as simple as building with blocks. They also have obvious advantages in terms of fire safety, system design costs, and inventory management.

(3) Central Inverters

Central inverters are usually the first choice for large-scale ground-mounted power stations. They are designed for high power, typically with a power rating of 500kW or higher. In large PV power stations, numerous PV modules are first connected in series or parallel to form a large-scale PV array, which is then connected to a single large central inverter. The advantage of this type of inverter is its relatively low cost; it can centrally process large amounts of DC power and convert it into AC power for efficient grid connection. However, it also has limitations: since all modules are connected to the same inverter, a malfunction in one module may affect the output of the entire system—like a problem in a key link of a production line disrupting the entire production process. Furthermore, when dealing with complex lighting conditions (e.g., some modules are shaded), central inverters cannot perform precise power adjustment like string or microinverters, leading to a certain loss in power generation efficiency.

(4) Hybrid Inverters

Hybrid inverters are versatile, supporting three modes: grid-connected, off-grid, and energy storage battery management. When connected to the grid and under sufficient sunlight, they can convert the DC power generated by solar panels into AC power—part of which is used to power local loads, and the surplus is fed into the grid. When the grid is cut off, they can automatically switch to off-grid mode, using electricity stored in batteries to power loads and ensure the normal operation of critical equipment. At the same time, they can intelligently manage the charging and discharging of batteries: charging the batteries when solar power generation is excessive, and discharging the stored electricity during peak power consumption or when solar power generation is insufficient. This type of inverter is particularly suitable for scenarios where users want to enjoy the economic benefits of solar power while requiring high power supply stability and backup power—such as hospitals, communication base stations, and households with extremely high demands for power reliability.

 IV.Wide Applications, Illuminating Green Life

(1) Residential PV Systems – Green Power Stations on Rooftops

At the household level, PV inverters are widely used in rooftop distributed power generation projects. More and more families install solar panels on their rooftops, and through PV inverters, convert the collected solar energy into AC power for household appliances. During the day, solar power not only meets the family’s own electricity needs (e.g., powering lighting, TVs, and refrigerators) but also allows surplus electricity to be sold to the grid, bringing additional economic benefits to the family. Meanwhile, the use of this green energy reduces the family’s reliance on traditional grid power, lowers electricity bills, and to a certain extent reduces carbon emissions—contributing to environmental protection and making families both producers and practitioners of green energy.

(2) Commercial and Public Facilities – The Main Force for Energy Conservation and Emission Reduction

In the field of commercial buildings and public facilities, large-scale PV power stations are usually equipped with central or string PV inverters. These locations have high electricity consumption, so installing PV systems brings significant energy-saving and economic benefits. For example, commercial buildings such as shopping malls, office buildings, and factories install solar panel arrays on rooftops or idle land; through PV inverters, they convert DC power into AC power suitable for commercial electricity needs, powering internal equipment such as lighting, air conditioners, and elevators, and greatly reducing commercial operating costs. For public facilities such as schools, hospitals, and libraries, PV power generation not only saves energy expenses but also reflects their social responsibility in sustainable development, creating a greener and more environmentally friendly environment for students, patients, and the public. Moreover, commercial and public facilities have large rooftop areas and abundant solar resources, making them ideal for large-scale PV system installation and important drivers of solar energy application.

(3) Microgrids and Off-Grid Systems – Messengers of Light for Remote Areas

In remote areas or places with unstable power supply (such as mountainous areas, islands, and grasslands), grid coverage is often difficult or power supply reliability is low. Microgrids or off-grid systems constructed by combining PV inverters with energy storage equipment have become reliable power sources for these areas. During the day, solar panels convert solar energy into electricity; after conversion by the inverter, part of the electricity is used immediately by local loads (e.g., residents, farms, and communication base stations), and the surplus is stored in batteries for use at night or on cloudy/rainy days. This independent power supply system breaks free from reliance on the traditional grid, bringing light and convenience to production and daily life in remote areas, and promoting local economic development and social progress. For example, some remote communication base stations use PV off-grid systems for power supply, ensuring stable coverage of communication signals and building a bridge for information transmission.

 (4) Electric Vehicle Charging Piles – Energy Supply Stations for Green Travel

With the vigorous development of new energy vehicles, PV inverters also play an important role in the field of electric vehicle (EV) charging. By combining PV power stations with EV charging piles, the electricity converted from solar energy by the inverter is stored in the energy storage equipment supporting the charging piles, and then converted again by the inverter to charge EVs. This integrated “photovoltaic-storage-charging” model realizes a fully clean and low-carbon process from energy generation to consumption, providing green and sustainable charging services for EVs. In public parking lots, highway service areas, and other locations in some cities, PV charging piles have begun to be built—they not only meet the charging needs of EVs but also reduce the impact of traditional charging methods on the grid, promoting the development of green travel. This allows EVs to truly achieve “zero emissions” during operation, contributing to improving urban air quality and traffic environments.

 (5) Agrivoltaics – A Win-Win Collaboration Between Sunlight and Land

Agrivoltaic projects are an innovative application model that combines PV power generation with agricultural production, and PV inverters play a key role in connection and conversion. In projects such as PV greenhouses and PV irrigation systems, solar panels are installed in the idle space of agricultural facilities; through PV inverters, solar energy is converted into electricity. On one hand, this electricity provides power support for greenhouse lighting, irrigation equipment, and ventilation systems, realizing the electrification and intelligence of agricultural production and saving traditional energy consumption. On the other hand, part of the surplus electricity can be fed into the grid to generate income. At the same time, PV panels can to some extent shade crops and reduce temperature, adjust light intensity, create a suitable growth environment, and promote the modernization of agricultural production. This model realizes the efficient use of solar and land resources, achieving a “win-win” outcome for PV power generation and agricultural production, and opening up a new path for industrial upgrading and sustainable development in rural areas.

V.Conclusion

As the core of solar power systems, PV inverters play a crucial role in various fields with their excellent performance and diverse functions, opening a door for us to a future of green energy. With continuous technological progress and innovation, PV inverters will develop toward higher efficiency, stronger compatibility, and greater intelligence—further promoting the vigorous development of the solar industry and enabling solar energy, a clean energy source, to better benefit human society.
