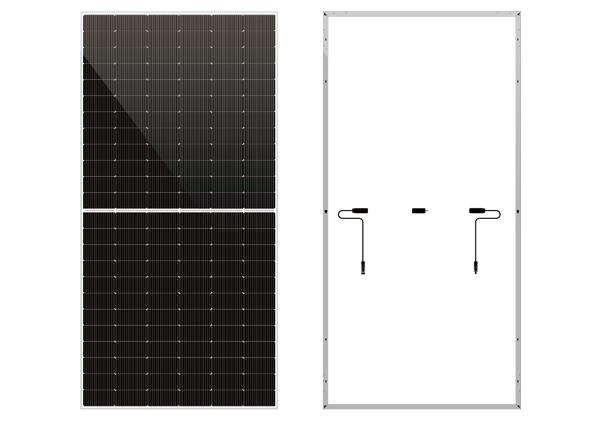

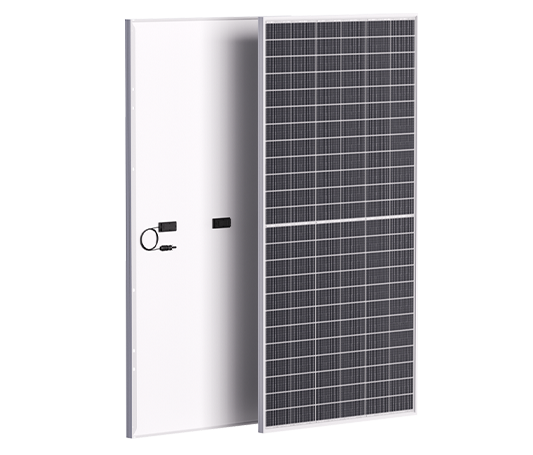

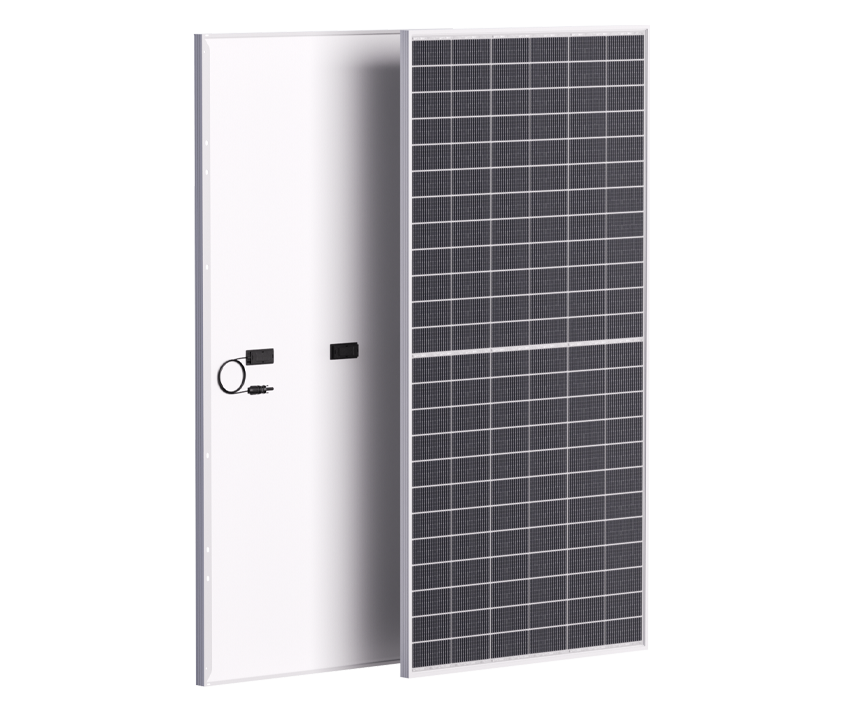

HY-M16/144H-585-620

High-Efficiency Half-Cell TOPCon Cells

High Quality and Reliable, Half-Cell TOPCon Cells with
Super Multi-Busbar Technology.
HonorSolar TOPCon Linear Power Warranty

100% Tested with a 25-year Guaranteed System Operation.

Enhanced Mechanical Load

Ensuring Consistent Power Output in Harsh Conditions.
Excellent Low-Light Performance

Effectively Increasing Power Generation in Low-Irradiance Environments.

PID Resistance

Ensures the System Maintains High-Efficiency Power Generation.
Class A Fire Resistance

Improves Fire Resistance in an All-Round Way.

High-Efficiency Half-Cell TOPCon Cells

The half-cell design splits traditional full-size cells into two, effectively reducing the internal resistance loss of the cells. This allows current to flow more smoothly during transmission, minimizing power loss. Especially in low-light conditions, they can still maintain excellent power generation performance, significantly increasing the overall electricity output of the module.

Enhanced mechanical load

In terms of core design, the product optimizes the structural mechanics model and adopts high-strength alloy materials and precision forging processes, enabling the key load-bearing components to have an anti-deformation capacity that is more than 30% higher than that of traditional versions. Whether it is continuous static load or high-frequency dynamic load, it can maintain a stable operating state, effectively avoiding problems such as component wear and fracture caused by overload, and significantly extending the service life of the equipment.

Structural stability

In practical applications, this advantage can easily meet the needs of diverse scenarios. For example, in industrial production lines, it can stably carry the handling and processing of heavy workpieces, ensuring the continuous and efficient operation of the production process; in logistics and transportation equipment, it can easily handle the loading, unloading and transportation of large-tonnage goods, improving the efficiency of logistics operations.

PID
Resistance

Choosing PID-resistant modules not only ensures the system maintains high-efficiency power generation throughout its full lifecycle, reducing revenue losses due to performance degradation, but also lowers the frequency and cost of later maintenance, making the investment return of photovoltaic power plants more stable and long-lasting.

HonorSolar
TOPCon Linear Power Warranty

With 15 Year of Product Warranty and 25 Year of Linear Power Warranty,HonorSolar Linear Power Warranty is not just a simple quality guarantee commitment, but a solid guarantee for the long-term stable power generation capacity of the product, demonstrating the brand’s absolute confidence in its own technology.

Excellent Low-Light
Power Generation Performance

By optimizing the structural design of the solar cells, they have a strong ability to capture and convert scattered light, overcast light, dawn and dusk light, and other low-irradiance environments. While traditional components experience a significant drop in power generation efficiency or even come to a standstill due to insufficient light, these components can still maintain high power generation efficiency, effectively increasing power generation throughout the day.

Fire Resistance
Class A

With Class A fire resistance certification, our PV modules, build a solid safety barrier for the power plant. This highest level of fire resistance certification means that the modules have demonstrated excellent flame resistance in rigorous tests . The modules adopt encapsulation materials with excellent flame retardancy, high-temperature resistant frame designs, and special internal circuit fireproof structures, improving fire resistance from material selection to process design in an all-round way.

Whole House Power BackUp

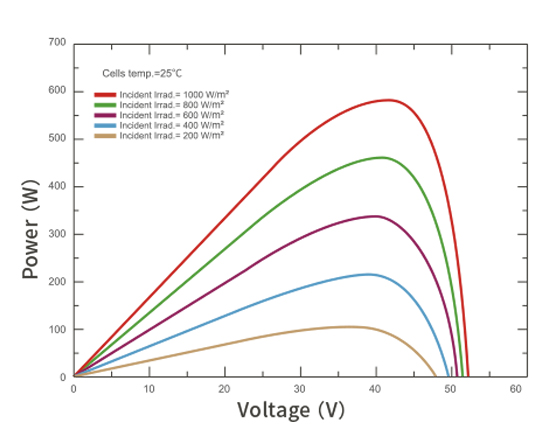

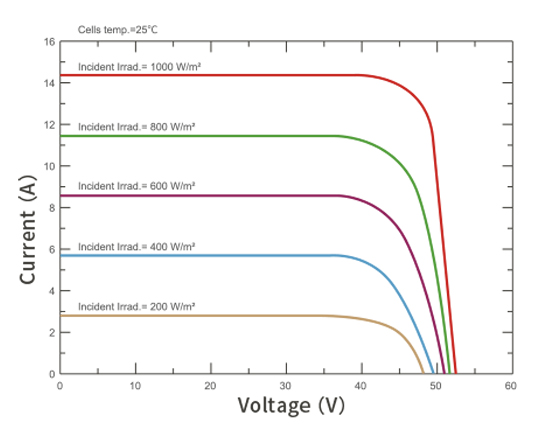

Electrical characteristics (STC/NOCT)

MODEL	HY-M16/144H-585		HY-M16/144H-590		HY-M16/144H-595		HY-M16/144H-600		HY-M16/144H-605		HY-M16/144H-610		HY-M16/144H-615		HY-M16/144H-620
	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Power Output-Pmax(W)	585	445.3	590	449.1	595	452.9	600	456.7	605	460.6	610	464.4	615	468.2	620	472
Maximum Power Voltage-Vmp(V)	43.57	41.41	43.68	41.51	43.79	41.63	43.9	41.72	44	41.82	44.11	41.92	44.22	42.03	44.33	42.13
Maximum Power Current-Imp(A)	13.43	10.76	13.51	10.82	13.59	10.88	13.67	10.95	13.75	11.02	13.83	11.08	13.91	11.14	13.99	11.21
Open-Circuit Voltage-Voc(V)	52.01	49.43	52.12	49.53	52.23	49.64	52.34	49.74	52.44	49.84	52.55	49.94	52.66	50.04	52.77	50.15
Short-Circuit Current-Isc(A)	14.29	11.58	14.37	11.54	14.45	11.61	14.53	11.67	14.61	11.74	14.69	11.8	14.77	11.86	14.85	11.92
Module Efficiency-ηm(%)	21.6	/	21.8	/	22	/	22.2	/	22.4	/	22.6	/	22.7	/	22.9	/
Power Tolerance(W)	(0,+5W)
Maximum System Voltage(V)	1500Vdc (IEC / UL)
Max Series Fuse Rating(A)	30A
	*Standard Test Conditions (STC): Irradiance 1000 W/m², Cell Temperature 25°C, Air Mass AM 1.5								*NOCT Testing Conditions: Irradiance 800 W/m², Cell Temperature 20°C, Wind Speed 1 m/s

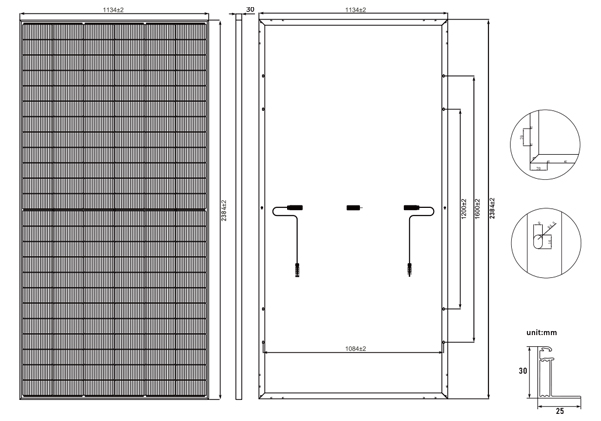

Structural performance

Cell Arrangement	TOPCon Mono-Crystalline 182mm (2x72pcs)
Dimensions of Module LWH	2384x1134x30mm
Weight	28.2 kg
Glass	Coated, 3.2mm tempered Glass, low Iron
Frame	Anodized aluminium alloy
Junction Box	IP68
Cables	4.0mm² ,30cm(+),30cm(-), length can be customized
Mechanical load	Front Side Max.5400Pa, Rear Side Max.2400Pa
Connectors	MC4 Compatible

Packaging

	2384x1134x30mm
Container	40’HQ
Module per box	37
Module per 40′ Container	740

Temperature characteristics

Rated operating cell temperature	45±2℃
Maximum power temperature coefficient	-0.330%℃
Temperature Coefficient of Voc	0.260%℃
Temperature Coefficient of lsc	+0.047%℃
Operational Temperature	-40~+85℃
