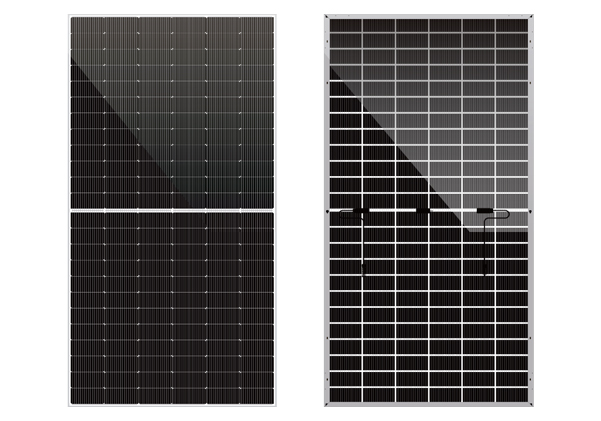

HY-M10/144G-555-585
-
High-Efficiency Half-Cell TOPCon CellsHigh Quality and Reliable, Half-Cell TOPCon Cells with
Super Multi-Busbar Technology.
-
HonorSolar TOPCon Linear Power Warranty100% Tested with a 30-year Guaranteed System Operation.
The half-cell design splits traditional full-size cells into two, effectively reducing the internal resistance loss of the cells. This allows current to flow more smoothly during transmission, minimizing power loss. Especially in low-light conditions, they can still maintain excellent power generation performance, significantly increasing the overall electricity output of the module.
Enhanced mechanical load
In terms of core design, the product optimizes the structural mechanics model and adopts high-strength alloy materials and precision forging processes, enabling the key load-bearing components to have an anti-deformation capacity that is more than 30% higher than that of traditional versions. Whether it is continuous static load or high-frequency dynamic load, it can maintain a stable operating state, effectively avoiding problems such as component wear and fracture caused by overload, and significantly extending the service life of the equipment.
Structural stability
In practical applications, this advantage can easily meet the needs of diverse scenarios. For example, in industrial production lines, it can stably carry the handling and processing of heavy workpieces, ensuring the continuous and efficient operation of the production process; in logistics and transportation equipment, it can easily handle the loading, unloading and transportation of large-tonnage goods, improving the efficiency of logistics operations.
PID
Resistance
Choosing PID-resistant modules not only ensures the system maintains high-efficiency power generation throughout its full lifecycle, reducing revenue losses due to performance degradation, but also lowers the frequency and cost of later maintenance, making the investment return of photovoltaic power plants more stable and long-lasting.
HonorSolar
TOPCon Linear Power Warranty
With 15 Year of Product Warranty and 30 Year of Linear Power Warranty,HonorSolar Linear Power Warranty is not just a simple quality guarantee commitment, but a solid guarantee for the long-term stable power generation capacity of the product, demonstrating the brand’s absolute confidence in its own technology.
Excellent Low-Light
Power Generation Performance
By optimizing the structural design of the solar cells, they have a strong ability to capture and convert scattered light, overcast light, dawn and dusk light, and other low-irradiance environments. While traditional components experience a significant drop in power generation efficiency or even come to a standstill due to insufficient light, these components can still maintain high power generation efficiency, effectively increasing power generation throughout the day.
Excellent Low-Light
Power Generation Performance
By optimizing the structural design of the solar cells, they have a strong ability to capture and convert scattered light, overcast light, dawn and dusk light, and other low-irradiance environments. While traditional components experience a significant drop in power generation efficiency or even come to a standstill due to insufficient light, these components can still maintain high power generation efficiency, effectively increasing power generation throughout the day.
Whole House Power BackUp
| MODEL | HY-M10/144H-555 | HY-M10/144H-560 | HY-M10/144H-565 | HY-M10/144H-570 | HY-M10/144H-575 | HY-M10/144H-580 | HY-M10/144H-585 | |||||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Power Output-Pmax(W) | 555 | 417 | 560 | 421 | 565 | 425 | 570 | 429 | 575 | 433 | 580 | 437 | 585 | 441 |
| Maximum Power Voltage-Vmp(V) | 42.8 | 39.19 | 43 | 39.28 | 43.2 | 39.38 | 43.4 | 39.51 | 43.6 | 39.64 | 43.8 | 39.77 | 44 | 39.91 |
| Maximum Power Current-Imp(A) | 12.99 | 10.64 | 13.04 | 10.71 | 13.1 | 10.79 | 13.15 | 10.85 | 13.21 | 10.92 | 13.26 | 10.97 | 13.32 | 11.02 |
| Open-Circuit Voltage-Voc(V) | 51.17 | 47.78 | 51.37 | 47.92 | 51.57 | 48.06 | 51.77 | 48.2 | 51.97 | 48.34 | 52.17 | 48.48 | 52.37 | 48.62 |
| Short-Circuit Current-Isc(A) | 13.83 | 11.35 | 13.89 | 11.42 | 13.95 | 11.49 | 14.01 | 11.55 | 14.06 | 11.62 | 14.12 | 11.69 | 14.18 | 11.76 |
| Module Efficiency-ηm(%) | 21.5 | / | 21.7 | / | 21.9 | / | 22.1 | / | 22.3 | / | 22.5 | / | 22.6 | / |
| Power Tolerance(W) | (0,+5W) | |||||||||||||
| Maximum System Voltage(V) | 1500Vdc (IEC / UL) | |||||||||||||
| Max Series Fuse Rating(A) | 30A | |||||||||||||
| *Standard Test Conditions (STC): Irradiance 1000 W/m², Cell Temperature 25°C, Air Mass AM 1.5 | *NOCT Testing Conditions: Irradiance 800 W/m², Cell Temperature 20°C, Wind Speed 1 m/s | |||||||||||||
| Cell Arrangement | TOPCon Mono-Crystalline 182mm (2x72pcs) |
| Dimensions of Module L*W*H | 2278x1134x30mm |
| Weight | 32 kg |
| Glass | Coated, 2+2mm tempered Glass, low Iron |
| Frame | silver |
| Junction Box | IP68 |
| Cables | 4.0mm² ,30cm(+),30cm(-), length can be customized |
| Mechanical load | Front Side Max.5400Pa, Rear Side Max.2400Pa |
| Connectors | MC4 Compatible |
| 2278x1134x30mm | |
| Container | 40’HQ |
| Module per box | 37 |
| Module per 40′ Container | 740 |
| Rated operating cell temperature | 44±2℃ |
| Maximum power temperature coefficient | -0.300%C |
| Temperature Coefficient of Voc | -0.250%℃ |
| Temperature Coefficient of lsc | +0.046%℃ |
| Operational Temperature | -40~+85℃ |
*The unit is millimeter.

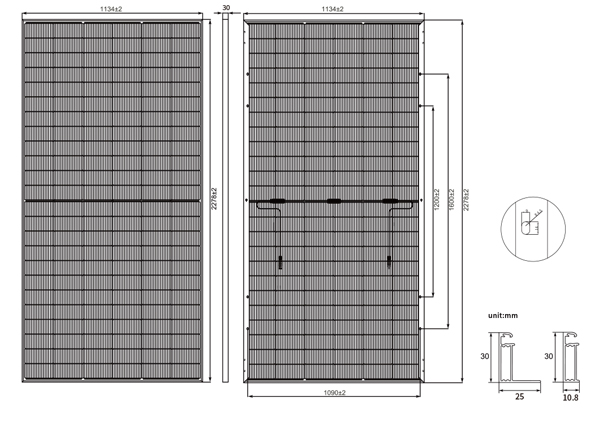

*The picture below is a schematic diagram of the product, if you need detailed drawings, please contact HonorSolar.
