Comprehensive Safety Protection

区块五第一张
A high-reliability protection system is elaborately constructed through a scientific and hierarchical multi-level safety design, integrating advanced software intelligent management and robust hardware physical defense to form a seamless safety barrier.
区块五第二张
This design does not only focus on single-point risk prevention but also achieves systematic coverage of potential hazards, ensuring that every link of the equipment operation is under effective protection. Starting from the core system-level intelligent protection, it has built three interlocking intelligent defense lines to cope with various electrical safety risks that may occur during operation.

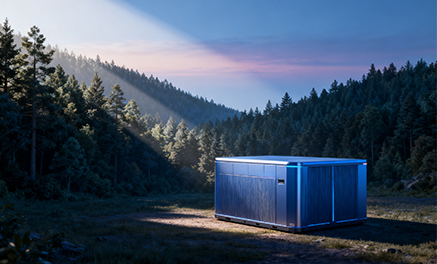

High Adaptability to Diverse Needs

Equipped with standardized interfaces, it supports multi-machine parallel connection and is easy for capacity expansion. Through modular design and customized parameter adjustment, it matches different electrical loads and installation environments, breaks through scenario limitations, and realizes wide-ranging applications.

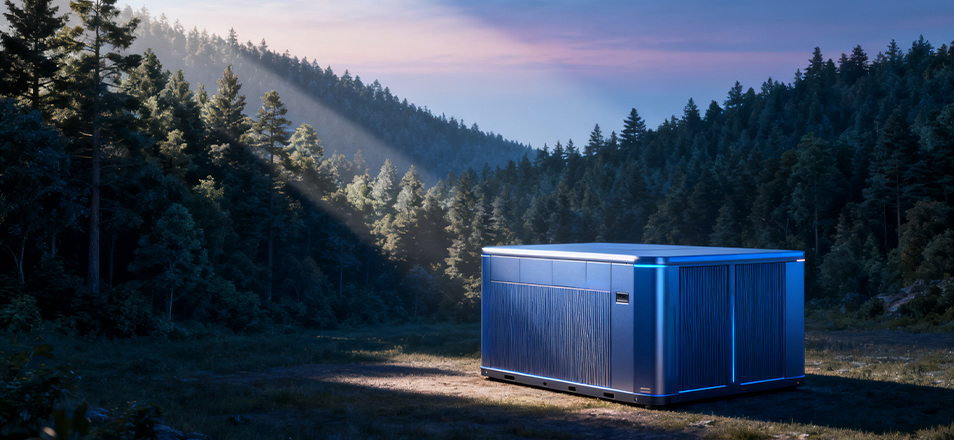

区块六

Product Features

  • Layer_1
    IP66 protection
    Dustproof, waterproof, and salt spray resistant
  • Layer 2
    AC and DC lightning protection
    No fear of lightning strikes
  • Layer 2 (1)
    Flexible Communications
    Optional WLAN, Ethernet, 4G communication

Whole House Power BackUp

DC DATA
Battery Capacity 232.9kWh
System Nominal Voltage 830V
Battery voltage Range 725~932V
Cell Type LFP 290Ah



AC DATA
Nominal Voltage 400V aC
Nominal Power 100kW
Nominal Frequency 50/60Hz
Power Factor >0.98
Power Factor (cos中) -1(leading)-1 (lagging)
On/off Grid Switch Manual/automatic (optional)



CONTROL DATA
Communication Interface RS485/CAN/Ethernet
Communication Protocol MODBUS-RTU /MODBUS-TCP/CAN2.0B/IEC61850



SYSTEM DATA
Max. System Efficiency ≥92%
Charge/discharge Rate ≤0.5P
Cycle Times 6000 times
Ambient Operating Temperature Range ‘-25-55℃ (>45℃℃ derating)
Relative Humidity 5~95%RH,non-condensing
Noise <70dB
Max. Working Altitude ≤4000m(>2000m derating)
IP Rating IP55
Cooling Concept Liquid-cooled
Fire Suppression System PACK level fire protection + active warning
Dimensions(WxDxH) 1400x1340x2230mm
Weight ≤2.8t

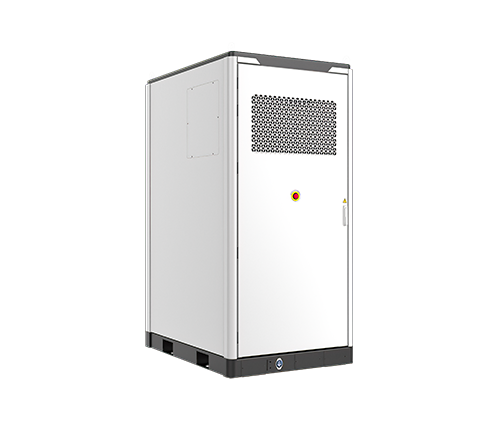

储能箱2
WC-ENS-02
